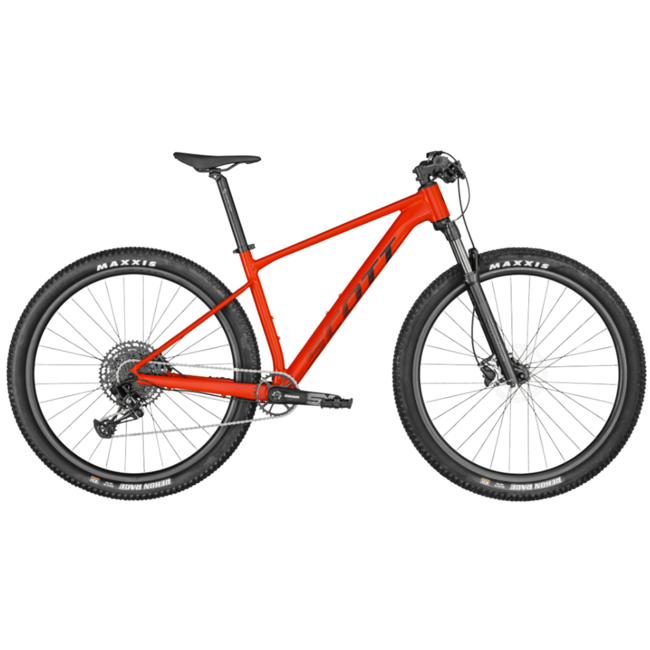

Scott Scale 970
If you’re looking for an affordable, high quality XC hardtail experience look no further than the SCOTT Scale 970. A great choice for riders ranging from seasoned experts to those looking for a first MTB, the Scale 970 will deliver a responsive, yet comfortable riding experience.
The lightweight alloy frame features not only progressive, modern geometry, but also the Syncros Cable Integration System which provides a clean look and keeps cables out of the way. The RockShox PopLoc remote system, a 12 speed SRAM NX-SX drivetrain and Shimano MT200 hydraulic disc brakes complete the package.
The buildout also features a Syncros cockpit, making for a hardtail that is just itching to finish first. In addition to its race-inspired geometry, the Scale 970 brings you the straightforward and sharp design that provides the Scale line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything.
Top-tier components and an uncompromising frame design decisively accelerate the Scale away from the pack with every pedal stroke. Whenever you find yourself up against the clock, tip the scales in your favor.
| *Please note that bike specifications are subject to change without prior notice | |
| FRAME | Scale Alloy 6061 Custom Butted Tubing / Syncros Cable Integration System / Tapered Headtube / BB92 / QR 5x141mm with 55mm Chainline |
| FORK | RockShox Judy Silver TK Solo Air / 46mm offset / Tapered Steerer / Reb. Adj. / Lockout / 100mm travel |
| REMOTE SYSTEM | RockShox PopLoc Remote |
| REAR DERAILLEUR | SRAM NX Eagle 12 Speed |
| SHIFTERS | SRAM SX Eagle Trigger |
| CRANKSET | SRAM SX Eagle DUB / 55mm CL / 32T |
| BB-SET | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| CHAIN | SRAM CN SX Eagle |
| CASSETTE | SRAM SX-PG1210 / 11-50 T |
| BRAKES | Shimano MT200 DiscBrake |
| ROTOR | Shimano SM-RT10 CL / 180/F and 160/R |
| HANDLEBAR | Syncros Alloy 6061 / T shape Flat / 9° / 740mm / Syncros Performance XC grips / H'STEMSyncros Alloy 6061 / oversized 31.8mm / 1 1/8" / 6° angle |
| SEATPOST | Syncros / 31.6x400mm |
| SEAT | Syncros Belcarra Regular 2.5 |
| HEADSET | Syncros - Acros OE Cable Routing HS System / OD 50/62mm / ID 42/56mm |
| HUB (FRONT) | Formula CL-51 |
| HUB (REAR) | Formula CL-2241 / QR 5x141mm |
| SPOKES | Stainless Black 15G / 1.8mm |
| RIMS | Syncros R27 / 32H / 27mm |
| FRONT TIRE | Maxxis Rekon Race / 2.4" / 60TPI |
| REAR TIRE | Maxxis Rekon Race / 2.4" / 60TPI |
| PEDALS | Femin FP873ZU |
| APPROX WEIGHTS IN KG | 13.5 (with tubes / wo Pedals) |
| APPROX WEIGHTS IN LBS | 29.76 (with tubes / wo Pedals) |
| MAX. SYSTEM WEIGHT | 128kg / The overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
Geometry
| S / 900 | M / 900 | L / 900 | XL / 900 | XXL | ||
| A | HEAD TUBE ANGLE | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| B | HEAD TUBE LENGTH | 90.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | 120.0 MM |
| C | TOP TUBE HORIZONTAL | 580.0 MM | 605.0 MM | 630.0 MM | 660.0 MM | 680.0 MM |
| D | STANDOVER HEIGHT | 755.0 MM | 786.0 MM | 805.0 MM | 835.0 MM | 870.0 MM |
| E | BB OFFSET | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM |
| F | BB HEIGHT | 315.0 MM | 315.0 MM | 315.0 MM | 315.0 MM | 315.0 MM |
| G | WHEEL BASE | 1,111.8 MM | 1,138.2 MM | 1,164.6 MM | 1,195.9 MM | 1,215.9 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 390.0 MM | 440.0 MM | 480.0 MM | 530.0 MM | 580.0 MM |
| J | SEAT ANGLE | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° |
| K | CHAINSTAY | 425.0 MM | 425.0 MM | 425.0 MM | 425.0 MM | 425.0 MM |
| L | REACH | 420.3 MM | 442.8 MM | 463.3 MM | 492.9 MM | 512.9 MM |
| M | STACK | 596.1 MM | 605.3 MM | 614.6 MM | 623.8 MM | 623.8 MM |
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | 80.0 MM |
| 0 | TRAIL | 112.6 MM | 112.6 MM | 112.6 MM | 112.6 MM | 112.6 MM |
